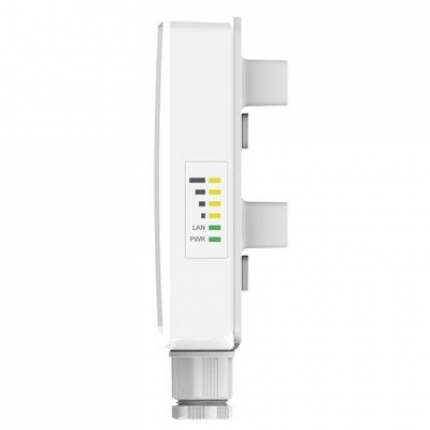

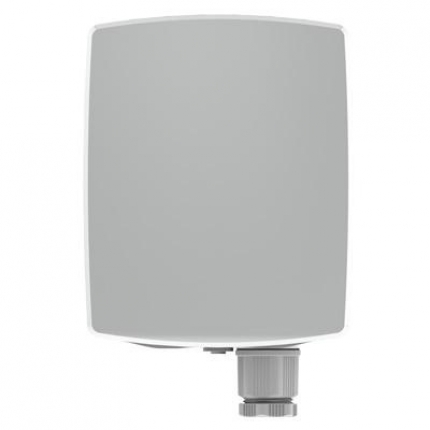

The APC 5M-12 delivers one of the highest performance and stability available in the 5 GHz CPE class wireless equipment in a smallest form factor on the APC series product line. This product combines a robust IP-65 compliant enclosure with a highly advanced 802.11n radio core containing MIMO 2x2 technology along with an integrated professional dual polarized directional antenna. The device is powered by a reliable, advanced, and feature-rich operating system, allowing the creation of very high throughput and stable wireless networks quickly, safely, and effectively. In addition, the APC 5M-12 supports access point operating mode which extends application scenarios and makes the APC 5M-12 suited for both point to point and point to multipoint networks for WLAN connectivity.

The robust software engine allows the APC 5M-12 to work as bridge or as a router, provides a user-friendly Adobe Flex - based GUI with instant changes, includes useful installation tools (Site survey, Antenna alignment, Delayed reboot, Spectrum analyzer), and also is compatible with Wireless Network Management System for one of the most advanced management tools on the market.


Usage recommendation

PTP mode (two APC 5M-12 devices): 10 km/ 6.2 mi

PTMP mode (APC 5M-12 as a client device): 5 km/ 3.1 mi

PTMP full capacity mode (APC 5M-12 as a client device): 1 km/ 0.6 mi

Maximum throughput: 160 Mbps


iPoll - proprietary wireless transmission protocol

iPoll

Deliberant APC series products have an option to use extremely efficient proprietary point-to-multipoint protocol called iPoll™. It eliminates mediated access by polling every subscriber sequentially. The data transmission arbitration is accomplished by the access point. Proprietary iPoll™ protocol enables maximum bandwidth with the lowest possible latency.



WNMS - managing and monitoring your networks on the cloud
WNMS
All Deliberant APC series devices can be managed and monitored using WNMS (Wireless Network Management System). A single software solution simplifies a large number of tasks for network administrators. WNMS Cloud version is available for those who are not willing to run it on an in-house servers.
