The APC 5M is a versatile, very efficient, and stable 5 GHz access point. This product is equipped with an extreme output power (up to 29 dBm) 802.11n MIMO radio wrapped securely inside a robust IP-65 compliant enclosure with two N-type connectors, suited for wide coverage area applications. The robust hardware is coupled with an advanced and feature-rich operating system optimized for high performance communications which allows compatibility with older 802.11a standards while adding support for the latest in wireless communications. The APC 5M supports access point, station, and WDS operating modes and can act as bridge or as router making it one of the most flexible devices on the market.

The robust software engine running on the APC 5M provides a user-friendly Adobe Flex - based GUI with instant changes, includes useful installation tools (Site survey, Antenna alignment, Delayed reboot) and also is compatible with Wireless Network Management System for one of the most advanced management tools on the market.

Why Deliberant?

Main features:

  • Router/bridge
  • WDS works with Ubiquiti and Mikrotik
  • VLAN for management and data
  • Virtual AP
  • Traffic shaping
  • SNMP
  • Tools: antenna alignment, site survey, delayed reboot, ping, traceroute, spectrum analyzer
  • And many more


It is a real-time spectrum scanning tool, which provides a graphical signal representation and displays maximum, current and average signal (noise) level.






All the new Deliberant outdoor wireless products have IP standards based protection rating, which makes them ideal for harsh weather conditions staring from extremely cold temperatures to unbelievably hot and humid climate zones around the world.

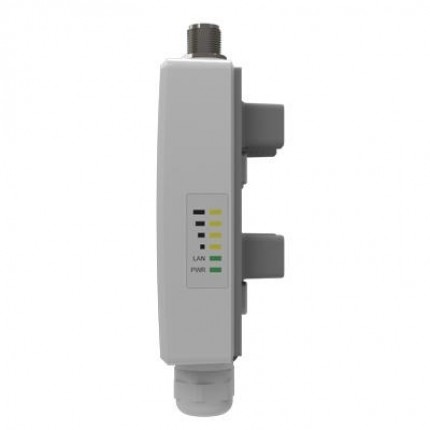

Software manageable LEDs for power and other information monitoring.

Configurable options:

CPE mode:

  • Set the thresholds of RSSI for each LED light

AP mode:

  • See an average RSSI level of all CPE’s connected to an AP
  • See the lowest RSSI level of all CPE’s connected to an AP
  • Set the thresholds to see how many CPE’s (users) are connected to an AP

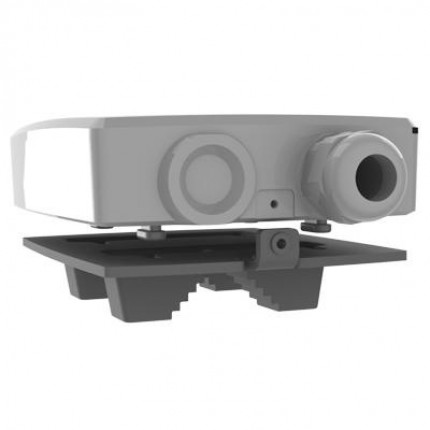

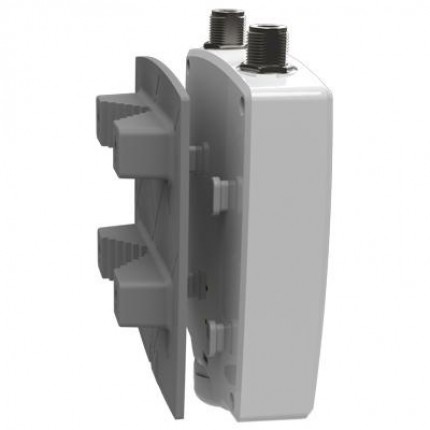

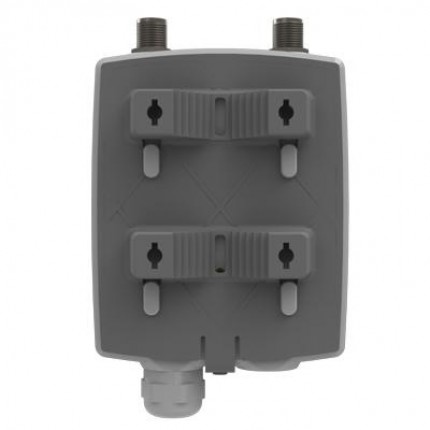

Wall and pole mounting options in the same package. No need to buy any additional mounting hardware.


With WNMS you can:

  • Collect information about your network devices (name, MAC, serial number, IP, firmware) in one place, have a quick search and data export possibilities.
  • Monitor your network and device actual status, define monitoring profiles for desirable tracking parameters (standard and custom based on SNMP value), get alerts on WNMS dashboard and via e-mail, analyze alarms history.





  • Execute the following tasks for your device or group of devices: set configuration file on device, get configuration file from device, upgrade a firmware, get a troubleshoot file, reboot. You can run tasks immediately or schedule them according to your needs.





  • Define profiles for collection of SNMP based statistical data from devices and create graphic reports.





  • See your network and devices on Google map including availability status.





  • See your devices on topology map and create interconnections between devices according to your network structure.
  • Have a big network and want to split it into smaller logical groups (smaller networks) and want to monitor, configure each part individually.

You get other advantages if you use the WNMS:
  • WNMS work on any network infrastructure. Devices can be connected through wired or wireless; can be on LAN behind a NAT or on WAN.
  • WNMS supports device provisioning. During the device registration to the system process WNMS can identify/filter an equipment by defined rule (by MAC, IP, serial number) and assign automatically profiles for monitoring and statistics collection, also can set configuration file on the device.
  • WNMS has presentable and user-friendly Adobe Flex GUI.
