APC 2S-14
The APC 2S-14 presents a 2.4GHz CPE product with superior performance and flexibility. This product is equipped with an extreme output power (up to 31 dBm) 802.11n radio that was created with a unique hardware design and coupled with a reliable, feature-rich operating system. This small device also has a robust, IP-65 compliant enclosure which is combined with a medium gain corner reflector, and emits EIRP up to 10 W. The APC 2S-14 is generally designed for CPE applications but can also act as an access point thus allowing point to point and point to multipoint network applications.
The included, robust software engine allows the APC 2S-14 to work as bridge or as a router, provides a user-friendly Adobe Flex - based GUI with instant changes, includes useful installation tools (Site survey, Antenna alignment, Delayed reboot, Spectrum analyzer), and also is compatible with Wireless Network Management System for one of the most advanced management tools on the market.
Why Deliberant?
Main features:
- Router/bridge
- WDS works with Ubiquiti and Mikrotik
- VLAN for management and data
- Virtual AP
- Traffic shaping
- SNMP
- Tools: antenna alignment, site survey, delayed reboot, ping, traceroute, spectrum analyzer
- And many more
It is a real-time spectrum scanning tool, which provides a graphical signal representation and displays maximum, current and average signal (noise) level.
All the new Deliberant outdoor wireless products have IP standards based protection rating, which makes them ideal for harsh weather conditions staring from extremely cold temperatures to unbelievably hot and humid climate zones around the world.
Software manageable LEDs for power and other information monitoring.
Configurable options:
CPE mode:
- Set the thresholds of RSSI for each LED light
AP mode:
- See an average RSSI level of all CPE’s connected to an AP
- See the lowest RSSI level of all CPE’s connected to an AP
- Set the thresholds to see how many CPE’s (users) are connected to an AP

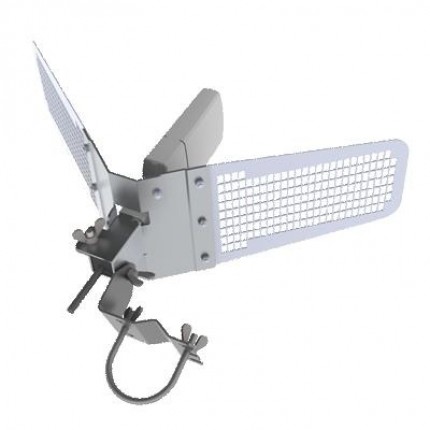

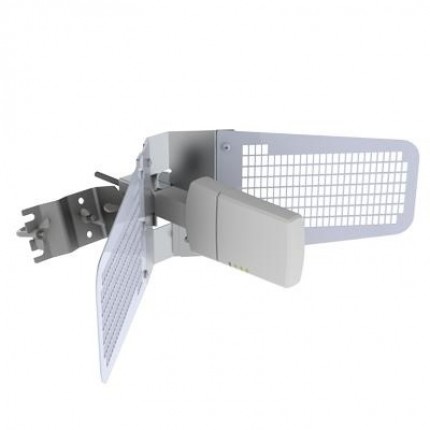

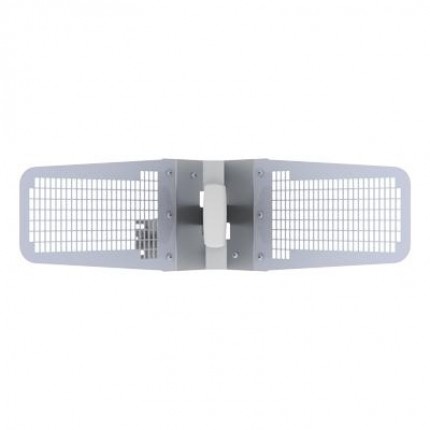

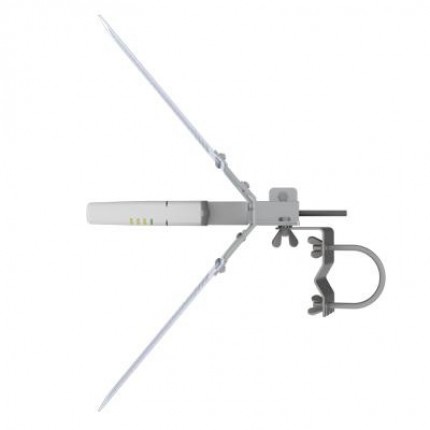

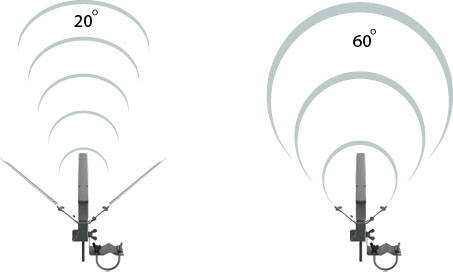

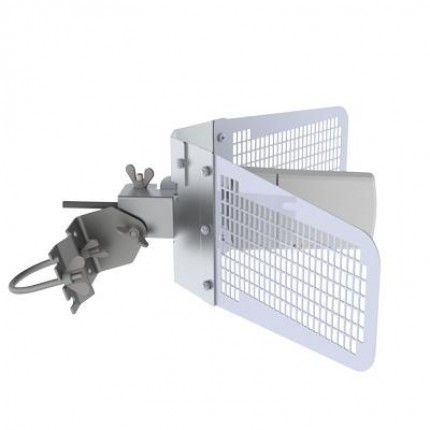

Deliberant APC 2S-14 has two type of antennas integrated in the same product. If the unit is assembled with the flaps it works as a direction antenna and if the flaps are taken out, it works as a sector antenna.
With WNMS you can:
- Collect information about your network devices (name, MAC, serial number, IP, firmware) in one place, have a quick search and data export possibilities.
- Monitor your network and device actual status, define monitoring profiles for desirable tracking parameters (standard and custom based on SNMP value), get alerts on WNMS dashboard and via e-mail, analyze alarms history.
- Execute the following tasks for your device or group of devices: set configuration file on device, get configuration file from device, upgrade a firmware, get a troubleshoot file, reboot. You can run tasks immediately or schedule them according to your needs.
- Define profiles for collection of SNMP based statistical data from devices and create graphic reports.
- See your network and devices on Google map including availability status.
- See your devices on topology map and create interconnections between devices according to your network structure.
- Have a big network and want to split it into smaller logical groups (smaller networks) and want to monitor, configure each part individually.
You get other advantages if you use the WNMS:
- WNMS work on any network infrastructure. Devices can be connected through wired or wireless; can be on LAN behind a NAT or on WAN.
- WNMS supports device provisioning. During the device registration to the system process WNMS can identify/filter an equipment by defined rule (by MAC, IP, serial number) and assign automatically profiles for monitoring and statistics collection, also can set configuration file on the device.
- WNMS has presentable and user-friendly Adobe Flex GUI.
